What is a Tufting Frame
A tufting frame is a sturdy structure that holds fabric tight while making tufted rugs and wall art. The frame’s main job is to maintain consistent tension across your backing fabric while you work with a tufting gun. Without proper tension, your project can end up with loose stitches, tears, or uneven designs.

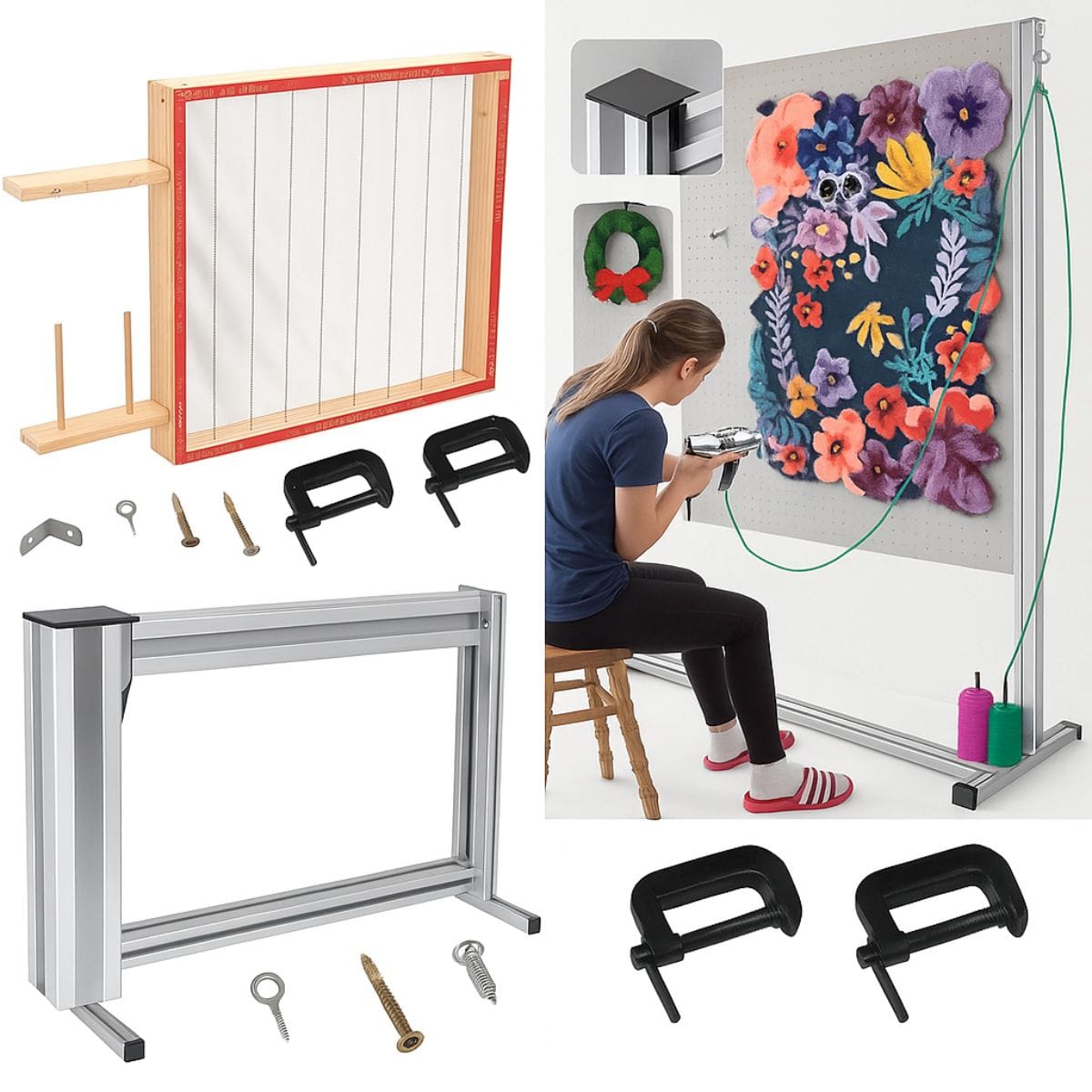

These frames come in different sizes and materials. Most crafters use wooden frames for affordability and ease of customization, while some prefer metal frames for durability and precision. Your choice depends on your project size, space, and budget.
Check out our tufting frame recommendations here
Basic Frame Requirements
Basic Frame RequirementsWhen building or buying a tufting frame, you need to consider four main factors: size, materials, components, and strength.
Size

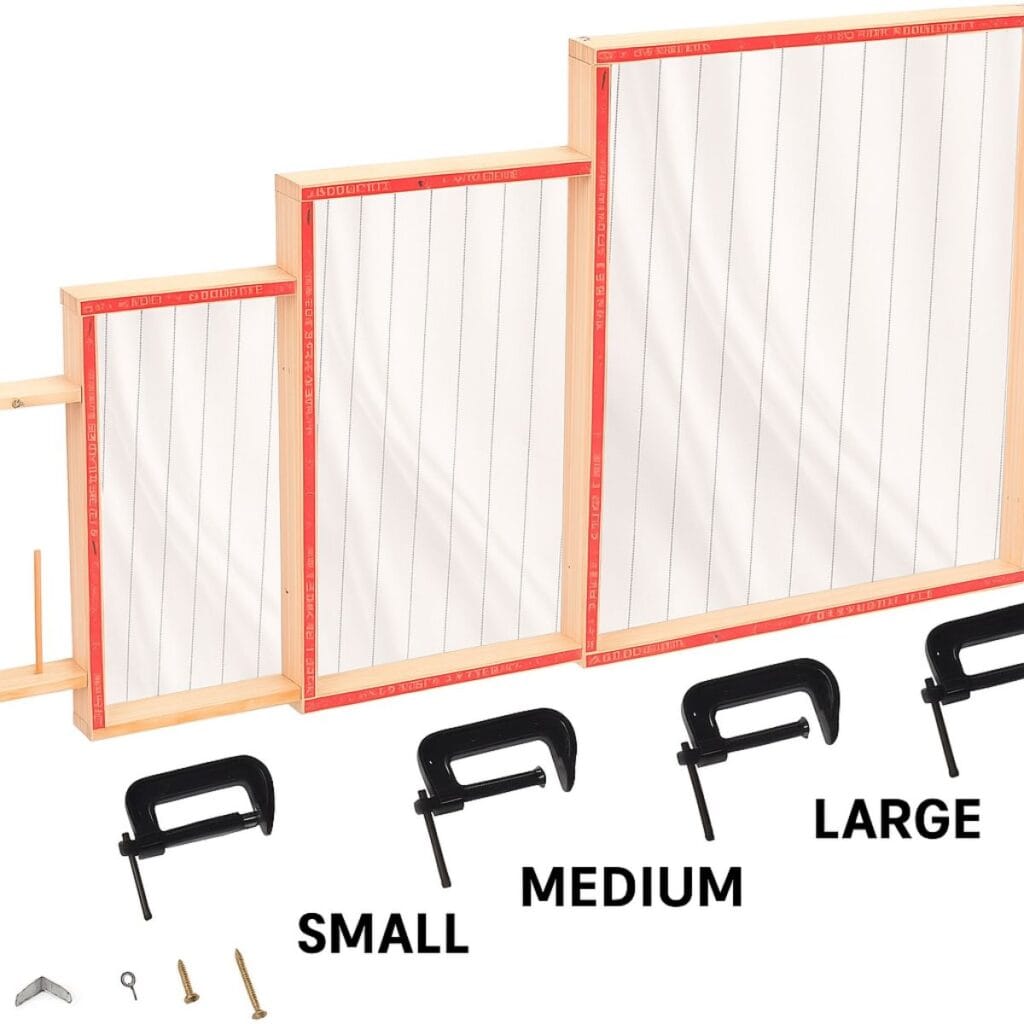

Your frame should be at least 6 inches larger than your planned project on all sides. Common frame sizes are:
Small: 3ft x 4ft (good for wall hangings)
Medium: 4ft x 6ft (standard rugs)
Large: 6ft x 8ft (area rugs)
Materials
The best woods for tufting frames are:
Pine: Affordable, easy to work with
Oak: More expensive but very durable
Maple: Hardest option, resists warping
Avoid softwoods or manufactured boards like MDF which can warp or break under tension.
Essential Components
A complete tufting frame needs:
Mainframe pieces (top, bottom, sides)
Support beams (crossbars for stability)
Corner brackets for reinforcement
Gripper strips for cloth attachment
Adjustable legs or support system
Mounting hardware (screws, bolts)
Thickness Requirements
- Mainframe: Minimum 2×4 inches
- Support beams: Minimum 2×3 inches
- Corner brackets: 1/8 inch steel or thicker
- Frame depth: At least 3/4 inch thick wood
Your frame must be strong enough to handle up to 100 pounds of tension without flexing or warping. Test the frame’s stability before starting any projects.
Types of Tufting Frames
Traditional Wooden Frames
The most common type for home crafters. These fixed-size frames are typically made from pine or oak and feature a simple rectangular design. They’re sturdy, reliable, and cost $100-200 in materials to build.
Pros:
- Affordable
- Easy to build
- Simple to repair
- Durable when built correctly
Adjustable Frames
These frames use sliding mechanisms or modular parts to change size. Perfect if you work on different-sized projects or have limited space. They cost $200-400 depending on materials and complexity.
Pros:
- Space-efficient
- Versatile for different project sizes
- Good for growing businesses
- Portable options available

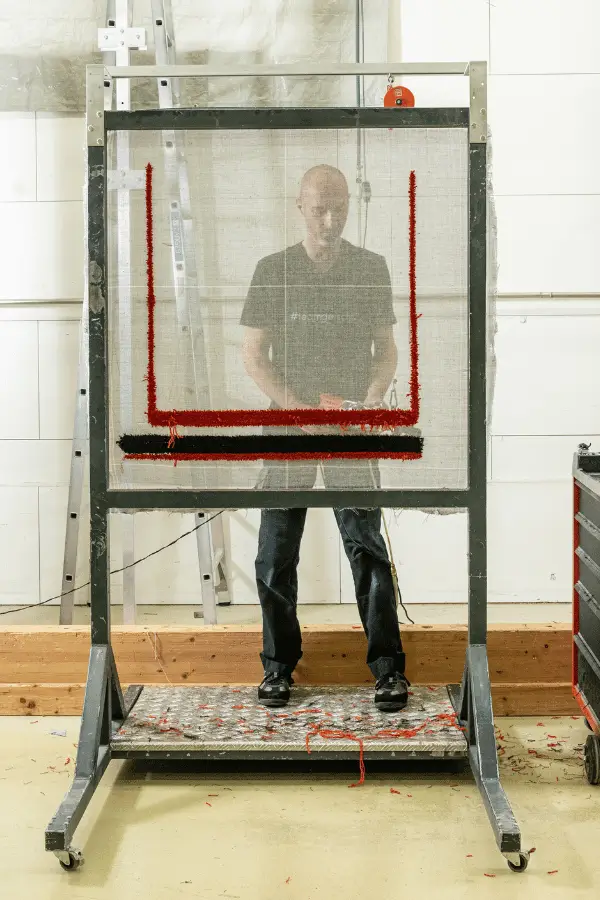

Commercial Frames
Heavy-duty frames designed for daily use. Usually metal construction with precision adjustments and built-in stands. Prices range from $500-2000.
Pros:
- Maximum stability
- Built-in tension systems
- Ergonomic design
- Long-lasting
DIY Options
Custom frames are built from basic materials. Most use wooden construction with simple tools and hardware store supplies. Costs vary but typically $50-150.
Pros:
- Lowest cost
- Customizable to your space
- Can be upgraded over time
- Great learning experience
Each frame type has its place depending on your needs. Consider your space, budget, and project sizes when choosing.
Building or Choosing a Frame
- Cost Comparison
- Tools needed
- Space requirements
- Portability considerations
Cost Comparison
Basic DIY Frame ($50-150):
- Wood and hardware: $30-80
- Tools (if needed): $20-70
- Gripper strips: $10-20
Pre-made Frame ($200-500):
- Basic wooden frame: $200-300
- Adjustable frame: $300-400
- Professional frame: $500+
Tools Needed
Essential Tools:
- Drill and drill bits
- Measuring tape
- Level
- Screwdriver
- Saw (circular or hand)
- Wood clamps
Optional Tools:
- Impact driver
- Square ruler
- Electric sander
- Workbench
Space Requirements
Work Area Needed:
- Frame size + 3ft on each side
- Height clearance: 6ft minimum
- Storage space equal to frame size
- Well-lit, flat surface
Portability
Consider These Factors:
- Frame weight (30-100lbs)
- Disassembly options
- Storage space
- Transport method
- Assembly time
Frame Setup
- Proper cloth mounting techniques
- Achieving correct tension
- Common mounting mistakes avoid
- Recommended hardware (staples, clamps, etc.)
Proper Cloth Mounting
- Centre your cloth on the frame
- Start with middle points on all sides
- Work outward from the centre
- Keep edges straight and parallel
- Use gripper strips for an even grip
Achieving Correct Tension
Key Steps:
- Pull the fabric tight but not stretched
- Check tension with light pressure
- Listen for a drum-like sound when tapped
- Recheck tension after 24 hours
- Adjust as needed during use
Common Mounting Mistakes
Avoid These:
- Uneven tension between sides
- Pulling too tight at corners
- Using weak staples
- Skipping middle attachments
- Not checking for fabric square
Recommended Hardware
Essential Items:
- Heavy-duty staples (3/8 inch)
- Gripper strips or carpet tack
- Corner brackets
- Metal clamps
- Support blocks
Maintenance & Care
- Regular checks and adjustments
- Storage recommendations
- When to replace components
- Troubleshooting common issues
Regular Checks
Weekly Tasks:
- Test overall frame stability
- Check all screws and bolts
- Look for warping or cracks
- Test fabric tension
- Clean dust and yarn debris
Storage
Best Practices:
- Store frame flat
- Keep in a dry area
- Cover when not in use
- Remove fabric if storing long-term
- Keep tools nearby
Component Replacement
Replace When:
- Wood shows splitting
- Screws strip or rust
- Gripper strips wear down
- Support beams flex
- Corner brackets loosen
Common Issues
Quick Fixes:
- Loose tension: Check mounting points
- Wobbling: Tighten all hardware
- Uneven surface: Level adjustments
- Squeaking: Add wood supports
- Frame flex: Add cross bracing
Advanced Considerations
- Working with different sizes of projects
- Frame modifications for specific designs
- Professional tips and tricks
Project Sizes
Sizing Tips:
- Small projects: Use frame dividers
- Large projects: Add support beams
- Odd shapes: Create a template first
- Multiple projects: Mark sections clearly
Frame Modifications
Useful Updates:
- Add adjustable legs
- Install LED lighting
- Mount tool holders
- Create guide markers
- Add fabric roll holder
Pro Tips
Expert Advice:
- Keep spare hardware ready
- Number your frame pieces
- Mark centre points permanently
- Use carpet tape for extra hold
- Keep tension testing tools handy
Conclusion
A good tufting frame is essential for successful rug making. Whether you choose to build or buy, focus on stability, proper tension, and regular maintenance. Start with the basics and upgrade as needed – many professional tufters began with simple DIY frames.
Remember these key points:
- Size your frame bigger than your projects
- Use quality materials and hardware
- Check tension regularly
- Maintain your frame consistently
