The Complete DIY Tufting Frame Blueprint: Build Your Own Rock-Solid Foundation

The tufting frame is the foundation of your entire rug-making process. Unlike commercial frames that may wobble or lack sufficient grip, building your own ensures you have the structural integrity and maximum tension required for professional-level results.

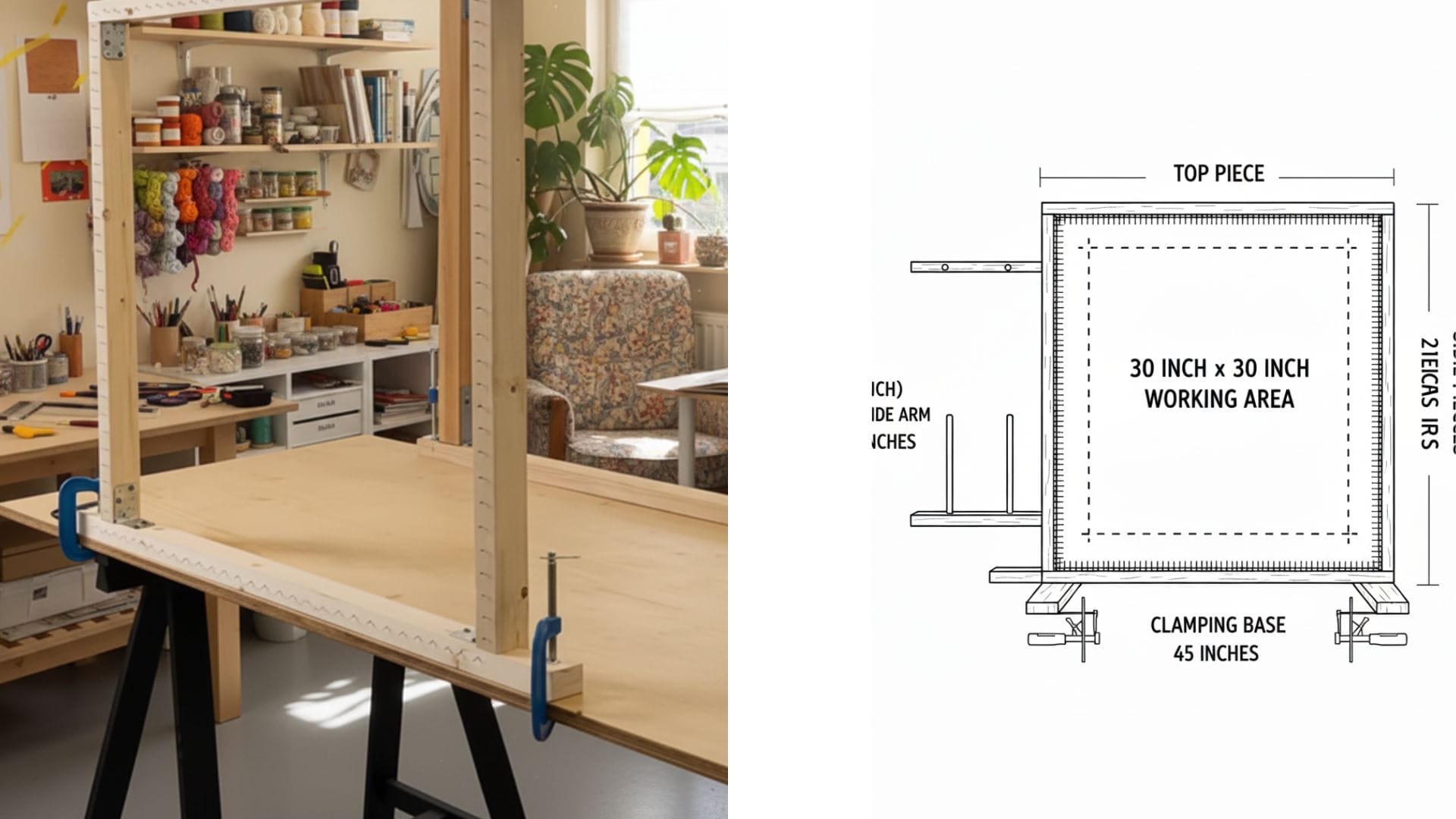

This definitive diy tufting frame guide provides the exact dimensions, materials list, and step-by-step assembly instructions to build a sturdy, reliable 30-inch by 30-inch starter frame that won’t bow or break under extreme fabric tension.

---

Part I: Planning and Materials (The Structural Golden Rule)

---

The Golden Rule: Deeper Than Thick

When you stretch your primary backing fabric, the tension creates immense pressure, trying to pull the middle of the frame inward (a phenomenon called bowing). To resist this force, your lumber must be significantly deeper than it is thick.

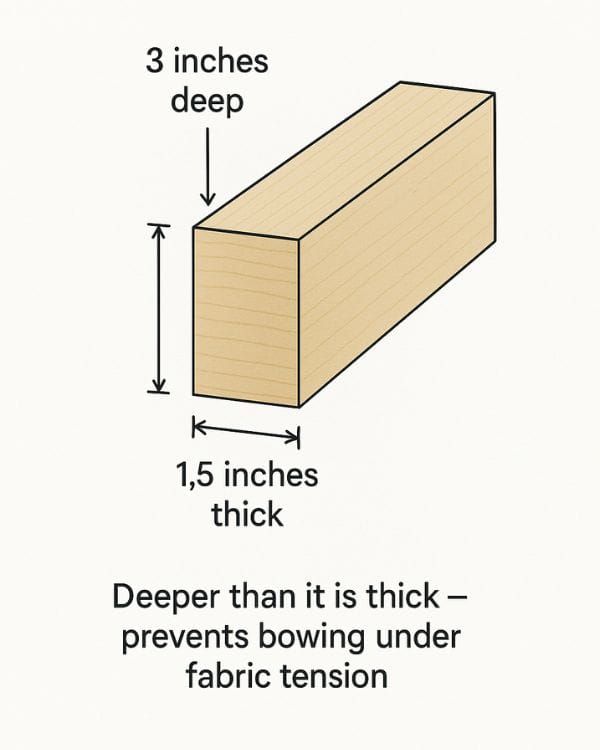

The proven dimensional recommendation to prevent bowing is wood that is approximately 80 mm deep by 40 mm thick (roughly 3 inches deep by 1.5 inches thick). This depth provides the rigidity needed for a “drum-tight” canvas.

---

---

Pro Tip: Start with pine for practice, then upgrade to oak or maple if you plan on tufting daily or creating large area rugs. For an in-depth understanding of how different lumber qualities affect project longevity and cost-effectiveness, consult resources on Quality Lumber Selection.

---

---

Part II: Step-by-Step Frame Assembly (Getting it Square)

---

Step 1: Calculate and Cut Your Lumber

While you can purchase lumber pre-cut at a hardware store, if you cut it yourself, ensure the cuts are clean and accurate. Uneven cuts are a primary cause of frame wobble.

• Lumber Cuts Required: Two 36-inch side rails, one 36-inch top rail, one 42-inch bottom base rail, and one 9-inch yarn guide arm.

---

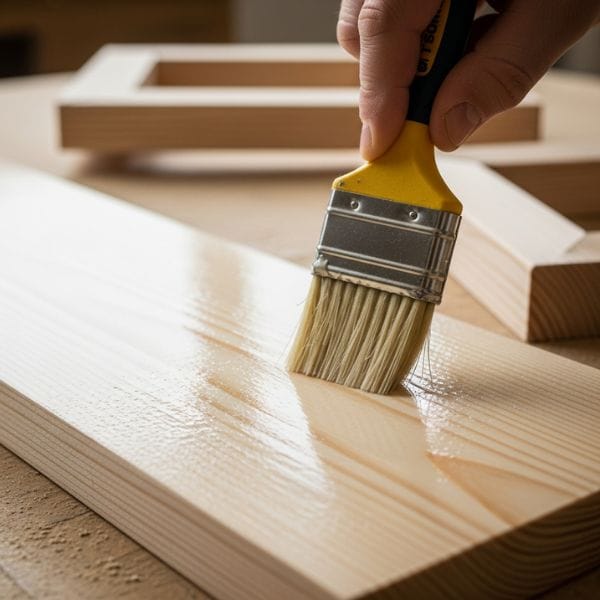

Step 2: Apply Protective Finish (Critical for Longevity)

This step is optional but highly recommended, especially if you used budget wood like Pine, as it ensures long-term structural integrity.

• Prevent Warping: Apply a wood sealer or light stain to all wood surfaces. This prevents moisture absorption, which is the main cause of wood warping, ensuring your frame maintains its essential “absolute square” throughout its lifespan.

---

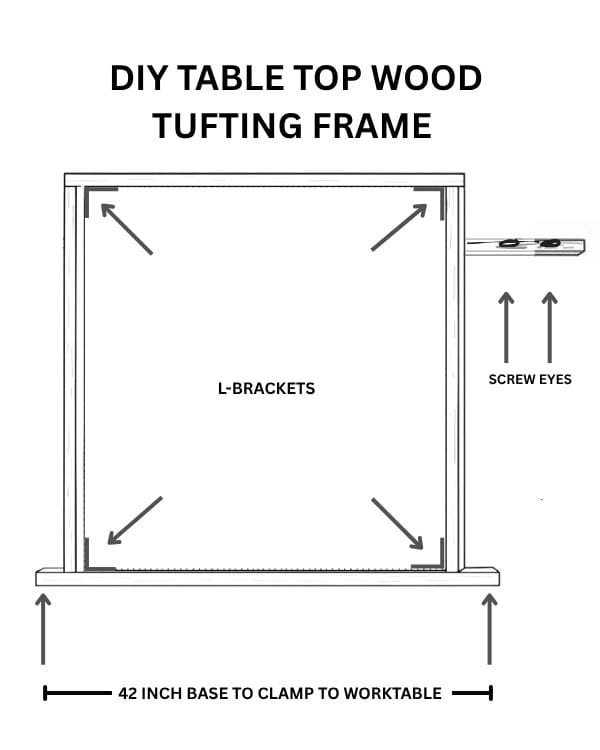

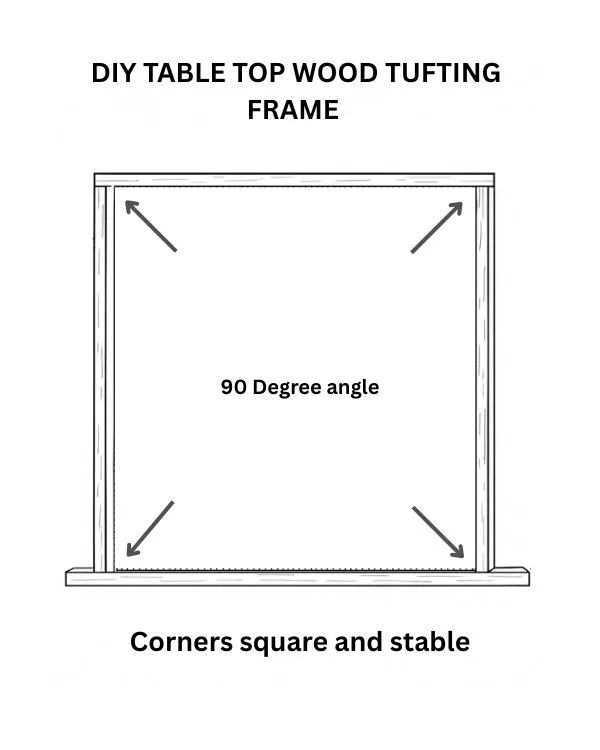

Step 3: Assemble the Frame Structure

A perfect 90-degree angle at every corner is non-negotiable for successful tufting. Any deviation will make achieving even fabric tension impossible.

1. Lay Out the Rails: Lay the three 36-inch rails and the 42-inch bottom rail on a flat surface in a square configuration.

2. Position Corner Braces: Position your 90-degree L-Brackets at each corner joint.

3. Pre-Drill Holes: This step is crucial. Use a drill bit slightly smaller than your screws to pre-drill holes before driving the screws. This prevents the wood from splitting, especially at the edges.

4. Secure Corners: Drive your 2.5 -inch deck screws through the L-Brackets and into the connecting pieces.

---

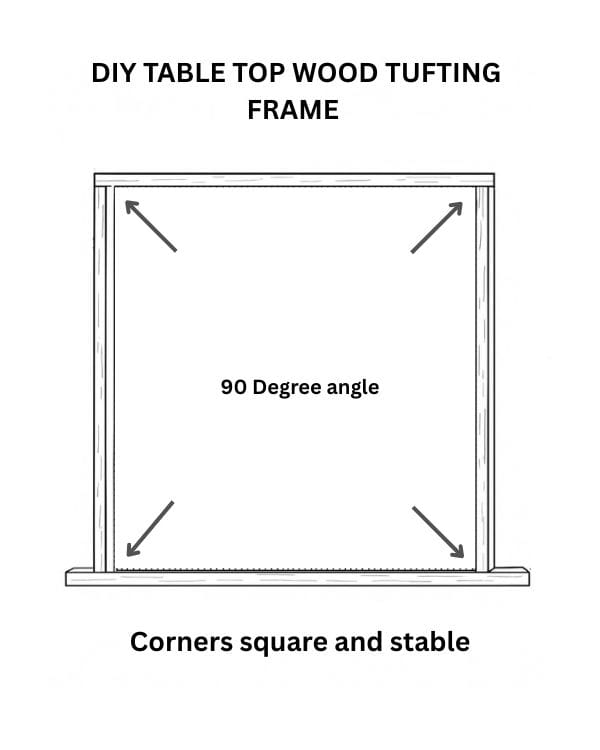

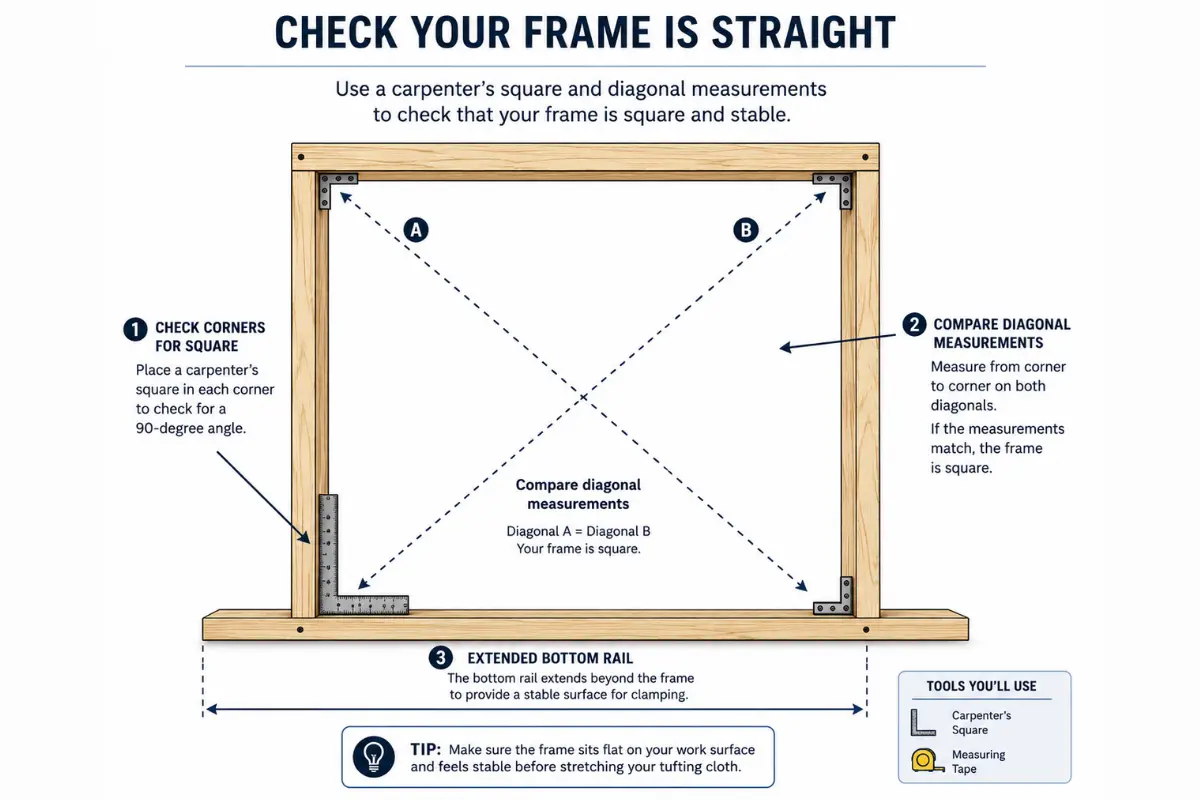

Step 4: Critical Checkpoint: Square and Stability

1. Check for Square: Use a carpenter’s square to ensure every corner is a perfect 90-degree angle. Check the diagonals; if the diagonal measurements are identical, your frame is perfectly square.

2. Check for Wobble: Place a level across your frame to check for any wobble or movement. If there is any movement, add additional screws or reinforce with extra corner braces.

---

Step 5: Attach the Yarn Guide

---

This component is essential for safety and optimal workflow.

1. Immobilize: The 42-inch bottom rail now serves as your integrated clamping base. Use C-clamps to secure this long base piece directly to your workbench or table.

1. Attach Yarn Guide Arm: Secure the 9-inch yarn guide piece to one side of the frame at an angle that extends outward. This arm should project the yarn path forward to improve flow. Install the two eye hooks (or M5 bolts) along its length to guide yarn smoothly to your tufting gun.

---

Part III: Install Your Fabric Tension System

The tack strips are the foundation of your “Drum-Tight” tension. They must be installed correctly to prevent fabric slippage.

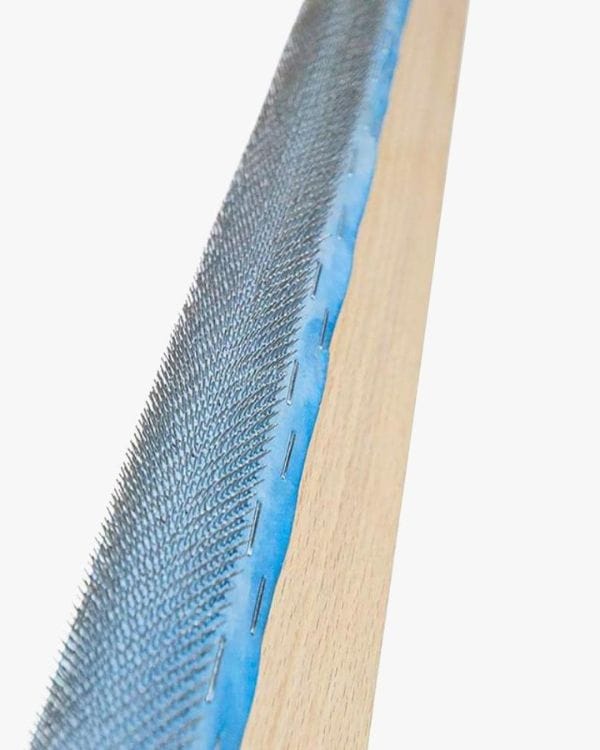

Pro Alternative: Durable Gripper Strips

While budget Carpet Tack Strips are sufficient for a beginner build, many intermediate tufters upgrade to specialized Durable Gripper Strips (also sometimes called Carpet Grippers):

• Cost vs. Safety: Gripper strips are more expensive than basic tack strips, but they are often manufactured with a smoother edge and are easier to handle, providing a safer and easier stretching solution.

• Reusability: Gripper strips can be reused for every project and allow you to re-stretch the cloth during the project without damaging the wood, making them a more durable long-term investment.

---

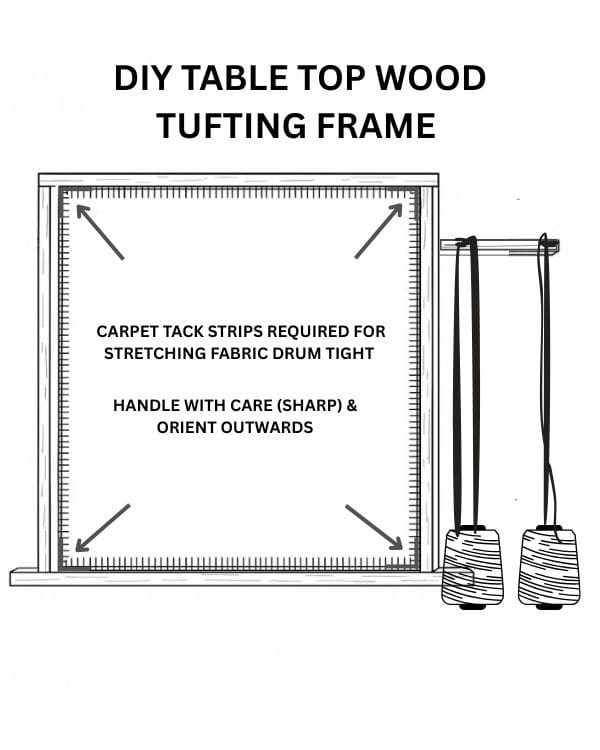

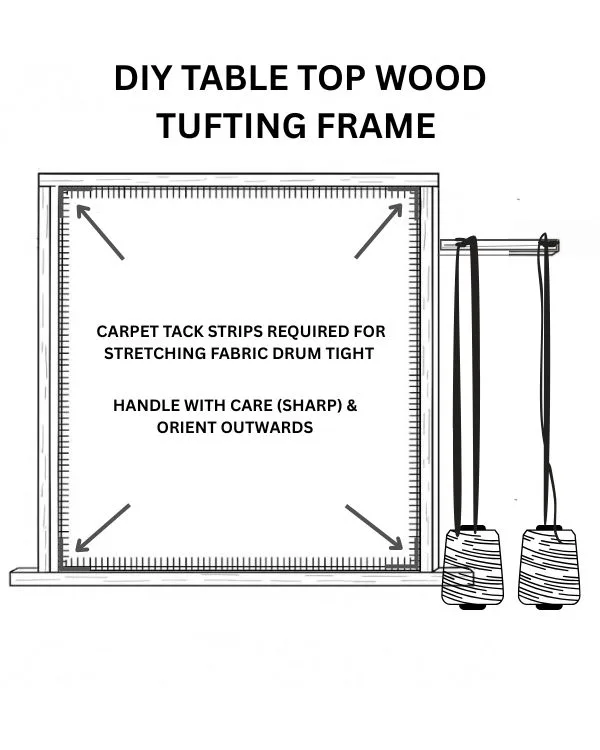

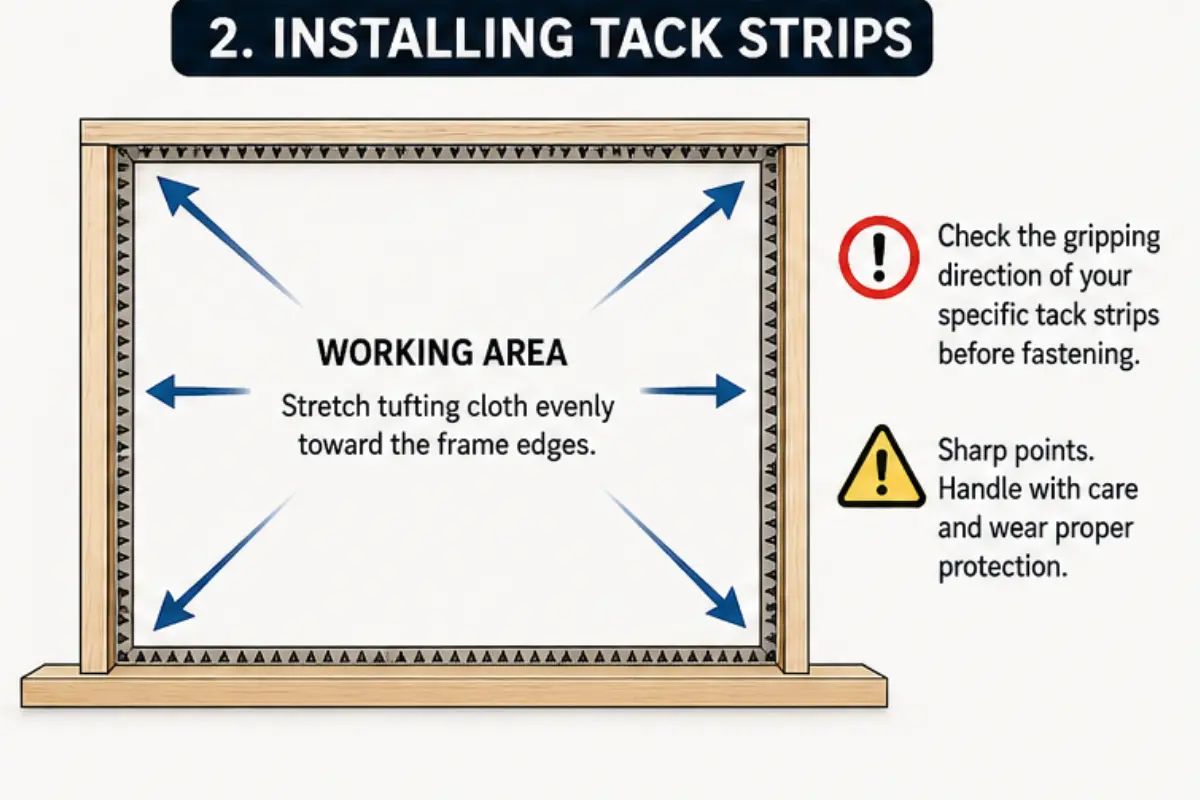

Step 6: Tack Strip Placement and Orientation

Your carpet tack strips are razor-sharp, always handle them with thick gloves.

1. Measure and Cut: Measure and cut the Carpet Tack Strips to fit along the interior edge of all four frame sides. You will need sufficient length to line the interior perimeter (approximately a 36-inch x 36-inch square).

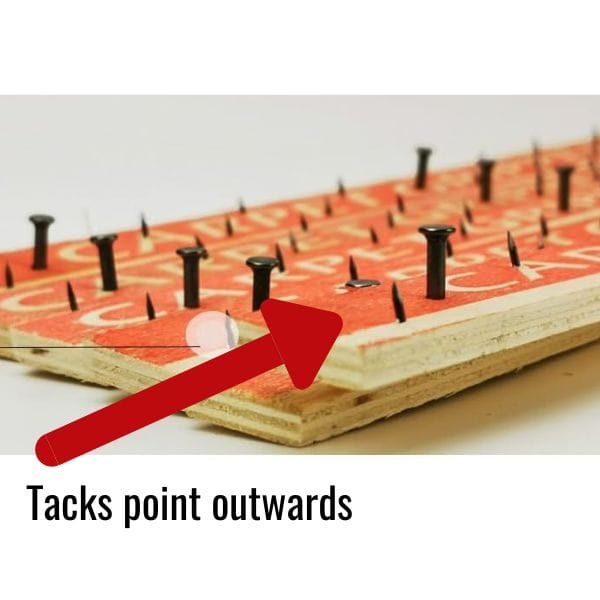

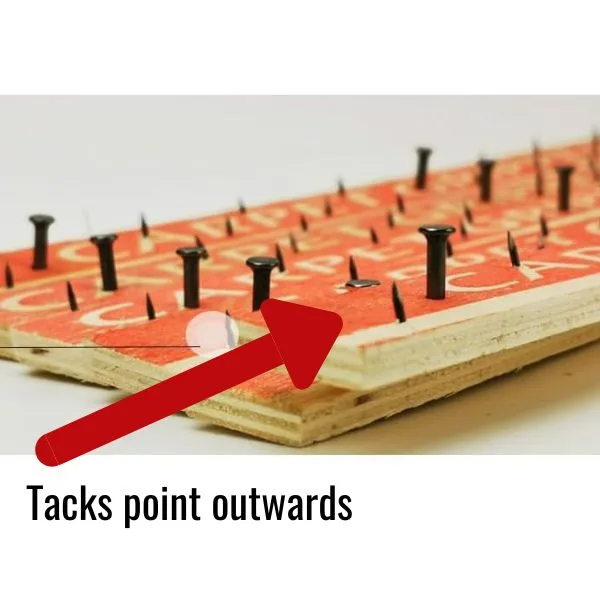

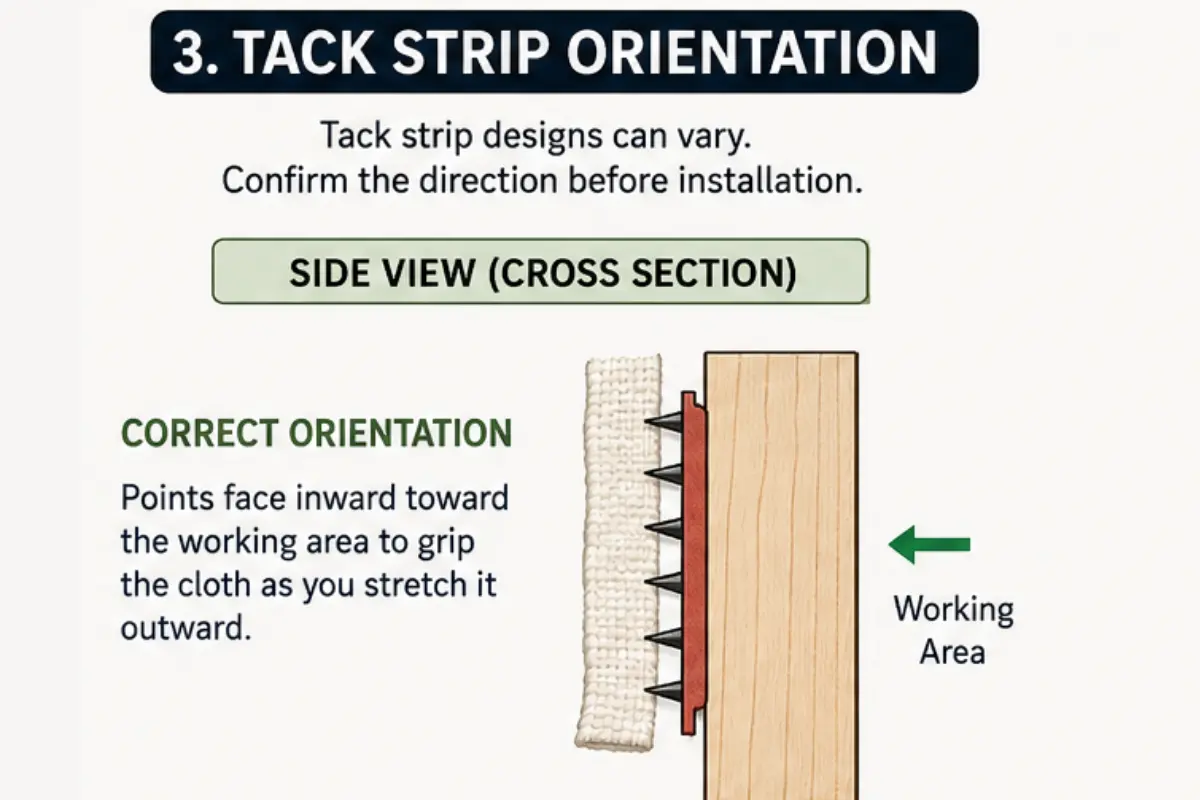

2. Orient the Nails (CRITICAL): The nails on the tack strips must be oriented outward, pointing toward the center of the frame opening. This ensures they grip the fabric when it is pulled taut.

3. Secure the Strips: Secure the tack strips to the frame using small finishing nails or a heavy-duty staple gun, ensuring they are flush with the wood surface.

---

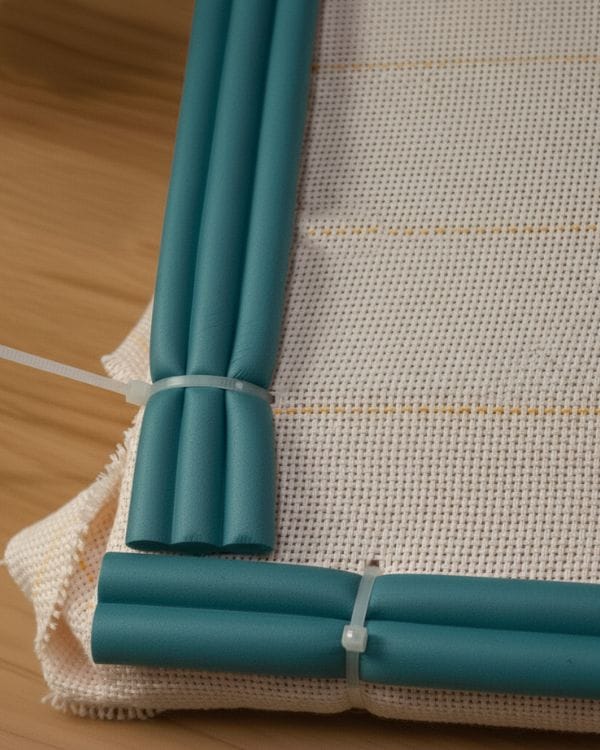

Step 7: Mandatory Safety Item: Foam Protection

The single most important safety step: Exposed tack strip nails are a serious injury risk. You must immediately cover all exposed nails with thick Protective Foam Strips (at least 2cm depth) whenever the frame is not actively in use, as these nails are razor-sharp.

---

Part IV: Next Steps and Maintenance

Stretching Your Fabric: Achieving Drum-Tight Tension

Your frame is now built, but your rug success still depends on how well you stretch the fabric.

For the step-by-step stretching methodology, tips on using stretching pliers, and advanced troubleshooting for tension issues, refer to our guide:

CLICK HERE for the PRO 2-STEP Fabric Stretching Guide

---

Scaling Up Your Frame

The 30″x30″ design works perfectly for beginners, but if you scale up for large area rugs (e.g., 5 ft x 7 ft), the 3-inch deep lumber will likely bow. For spans exceeding 4 feet, you may need to upgrade to thicker wood (like 4x4s) or add central structural supports to maintain rigidity.

---

Maintenance and Longevity

Your frame must remain an “absolute square” throughout its lifespan.

• Regular Inspections: Periodically check the corner L-Brackets and screws for tightness, as the constant tension from the cloth can loosen them over time.

• Warping Mitigation: Because of the protective finish applied in Step 2, your frame is protected from external moisture damage. Continue to inspect the wood for any signs of movement or flexing.

---

---
